Τόπος καταγωγής:
Σαγκάη, Κίνα
Μάρκα:
carterberg
Πιστοποίηση:
IATF16949
Αριθμό μοντέλου:
Cb-5

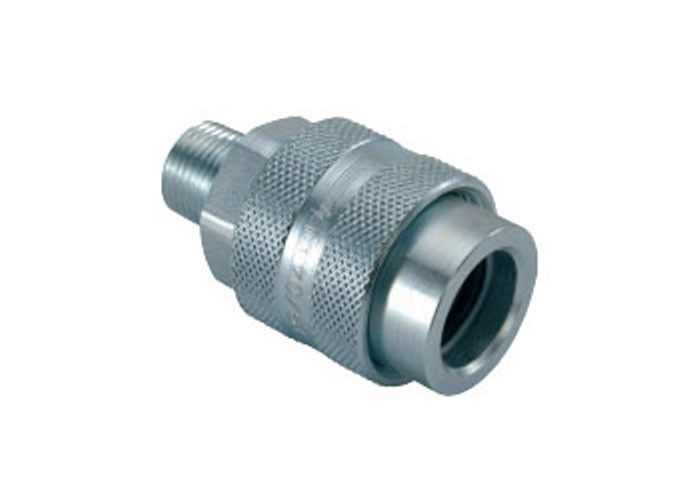

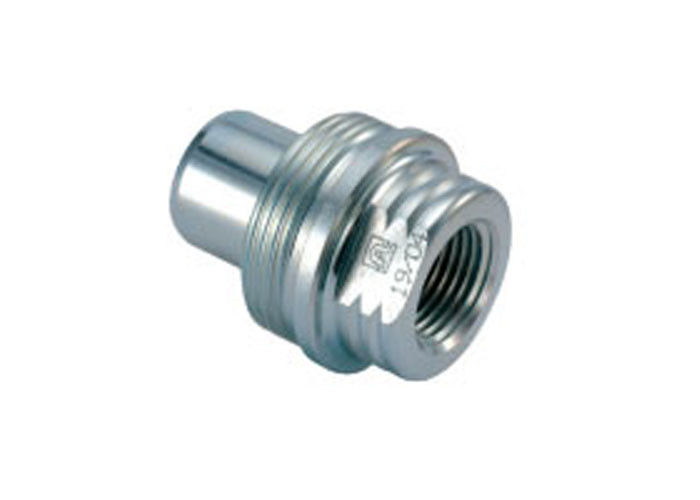

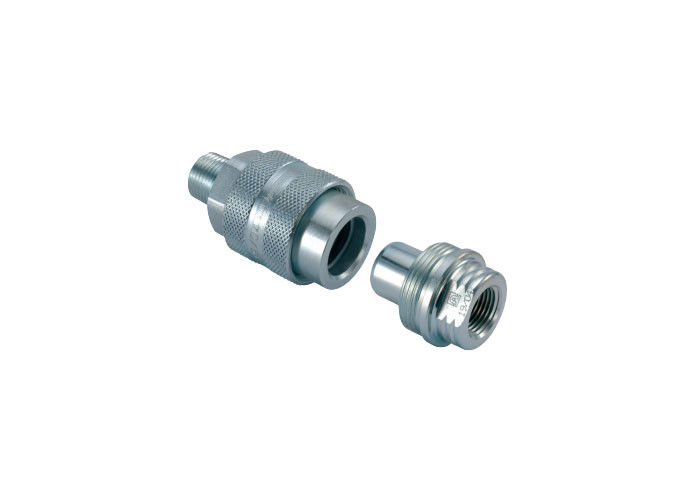

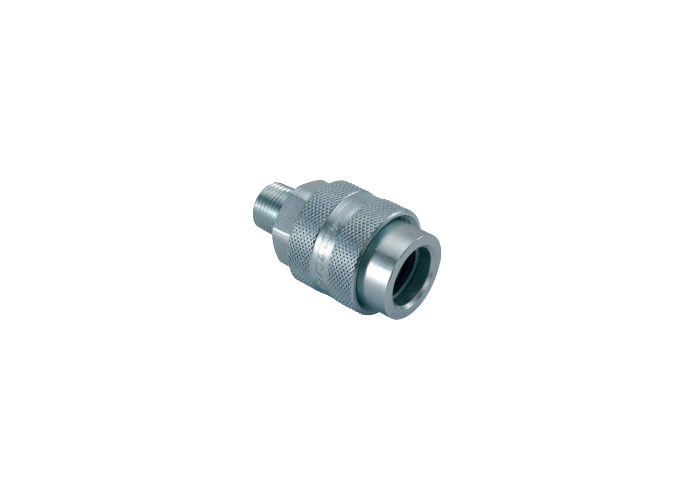

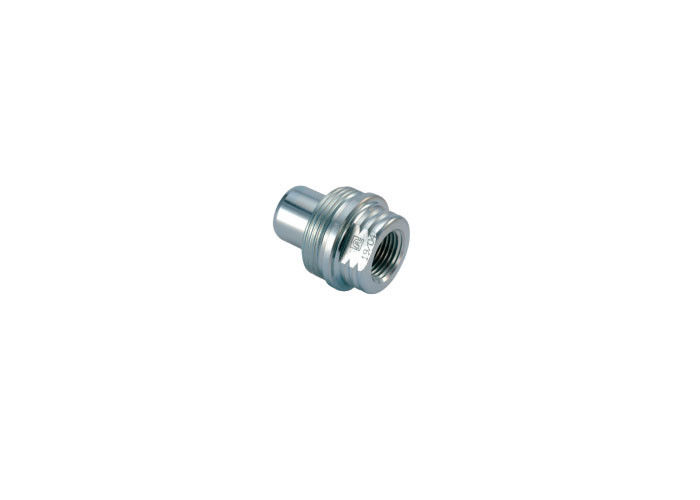

Hydraulic jacks, clamping systems, lifting and emergency release equipment applications Threaded Quick Connect
As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Applications
Hydraulic jacks, clamping systems, lifting and emergency release equipment,
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-5MN-C | 1/4 NPT | 60 | 28,5 | 22 |
| 3/8" | CB-S3S-5MN-C | 3/8 NPT | 70 | 35 | 27 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2S-5MN-C | 1/4 NPT | 35 | 15,9 | 19 |
| 3/8" | CB-P3S-5MN-C | 3/8 NPT | 42 | 19 | 23 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
