Τόπος καταγωγής:
Κίνα
Μάρκα:
carterberg
Πιστοποίηση:
IATF16949
Αριθμό μοντέλου:
CB-HS

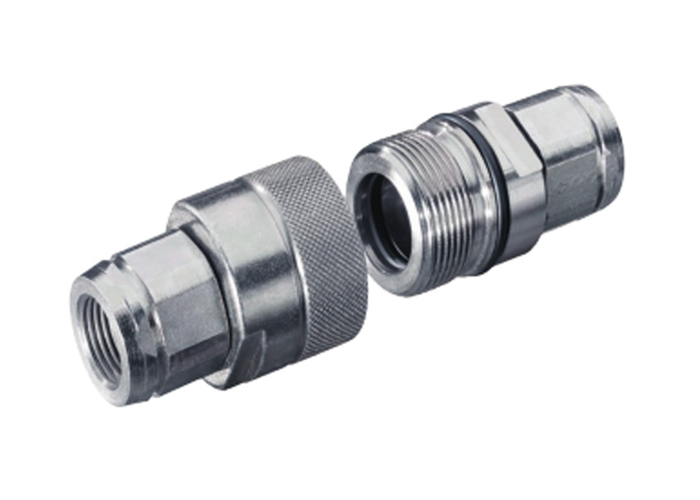

HS Series ISO 14541 Hydraulic Couplings | 300–450 Bar Thread-to-Connect Cone Valve Fittings
The HS Series ISO 14541 Thread-to-Connect Hydraulic Couplings are designed for high-pressure applications up to 450 bar. Featuring a reliable cone valve system and threaded locking mechanism, they ensure secure, leak-free performance under demanding industrial conditions. Constructed from durable carbon steel with Zn-Fe (Cr III) plating for corrosion resistance, these couplings offer BSP, NPT, and SAE thread options. Standard NBR seals are provided, with FKM and EPDM available for various fluids and temperatures (-25°C to +100°C). Both halves can be connected under residual pressure, making them ideal for agricultural machinery, construction equipment, special vehicles, oil drilling platforms, and metallurgical systems.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| HS | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 04 | 6.3 | 45 | 12 | 17 | 190 | 270 | 250 | 0.8 |
| 08 | 10 | 40 | 23 | 46 | 130 | 150 | 180 | 1.9 |
| 10 | 12.5 | 40 | 45 | 90 | 126 | 150 | 140 | 2.7 |
| 12 | 19 | 30 | 106 | 190 | 100 | 130 | 140 | 9.3 |
| 20 | 25 | 30 | 189 | 280 | 100 | 130 | 140 | 16 |
| 25 | 31.5 | 30 | 288 | 480 | 100 | 100 | 100 | 30 |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
