Τόπος καταγωγής:
Σαγκάη, Κίνα
Μάρκα:
carterberg
Πιστοποίηση:
IATF16949
Αριθμό μοντέλου:
Cb-5

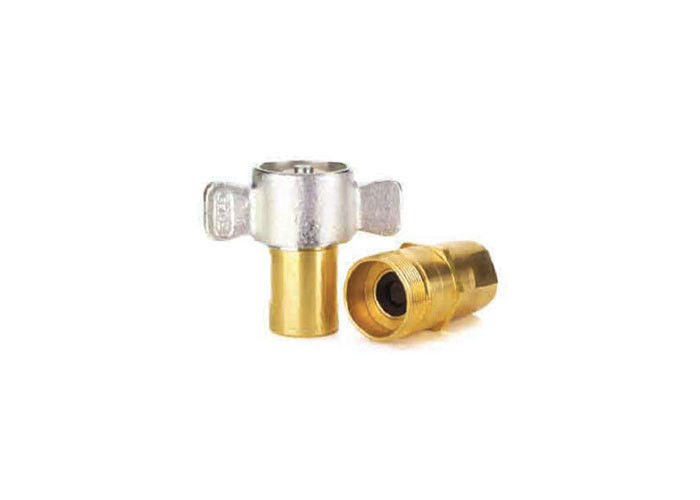

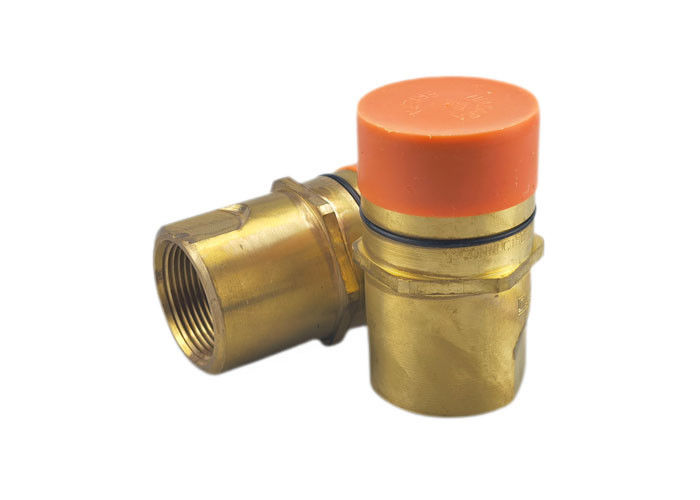

Compatible with HANSEN 96 series Brass Thread type hydraulic quick coupling
CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Applications
Applications needing connection or disconnection under pressure, with low fluid loss (flat-faced valves). Fuel industry, tractor-trailer connections
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/4" | CB-S6B-5FN-A | 3/4-14 | 79 | 103 | 29,2 |
| 1" | CB-S8B-5FN-A | 1-11 1/2 | 96 | 113 | 36,6 |
| 1"1/4 | CB-S10B-5FN-A | 1-1/4 | 101 | 132 | 45,2 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 3/4" | CB-P6B-5FN-A | 3/4-14 | 79 | 38 | 33,3 |
| 1" | CB-P8B-5FN-A | 1-11 1/2 | 90 | 47,5 | 39,6 |
| 1"1/4 | CB-P10B-5FN-A | 1-1/4 | 94 | 53,8 | 47,8 |
